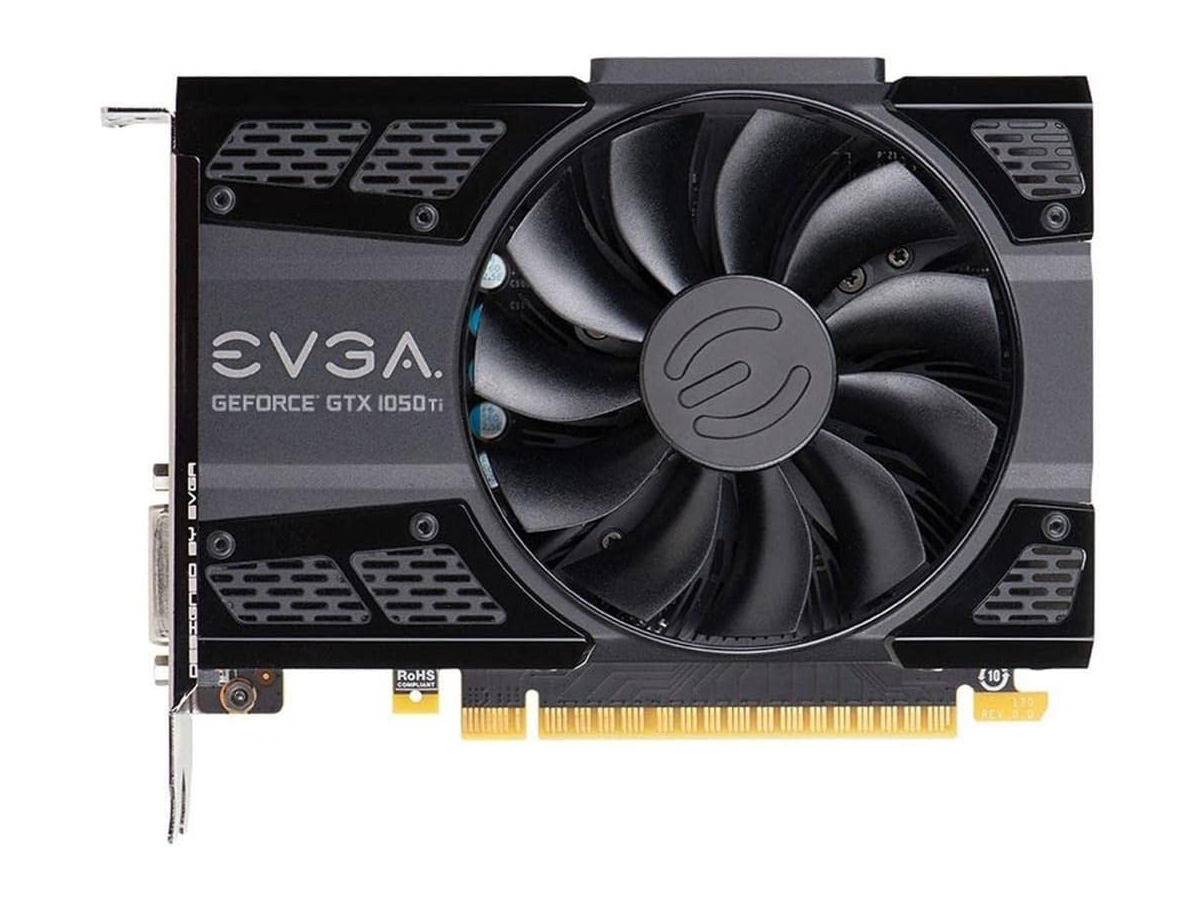

Nvidia GeForce GTX 1050 Ti
CM4 Functionality | Pi 5 Functionality | Driver Required? | More Info |
---|---|---|---|
None | Currently Testing | Yes | GitHub Issue |
Videos Related to this Card
There are no videos for this card yet.
Description and Notes
The GTX 1050 Ti is supported by both Nvidia’s proprietary driver and the open source Nouveau driver in the Linux Kernel.
It will require a 1x to 16x adapter, or some other means of adapting the 16x-sized card pins into the 1x slot on the CM4 IO Board. The card takes power from the slot, up to 75W, so make sure your PCIe adapter/riser can supply that much power.
Nouveau (open source) driver
To get the Nouveau driver loaded, you have to recompile the Linux kernel for Pi OS.
Go to Device Drivers
> Graphics support
on the menuconfig
step, and select the Nouveau
driver to install.
If you want to be able to boot the Pi all the way, make sure to blacklist the nouveau
kernel module:
sudo nano /etc/modprobe.d/blacklist-nouveau.conf
# Put this inside the file and save it:
blacklist nouveau
Now, after a reboot, you can explicitly load the module and see what happens by following dmesg
in another terminal session:
sudo modprobe nouveau
See the linked GitHub issue for more details on the current status of this card.
