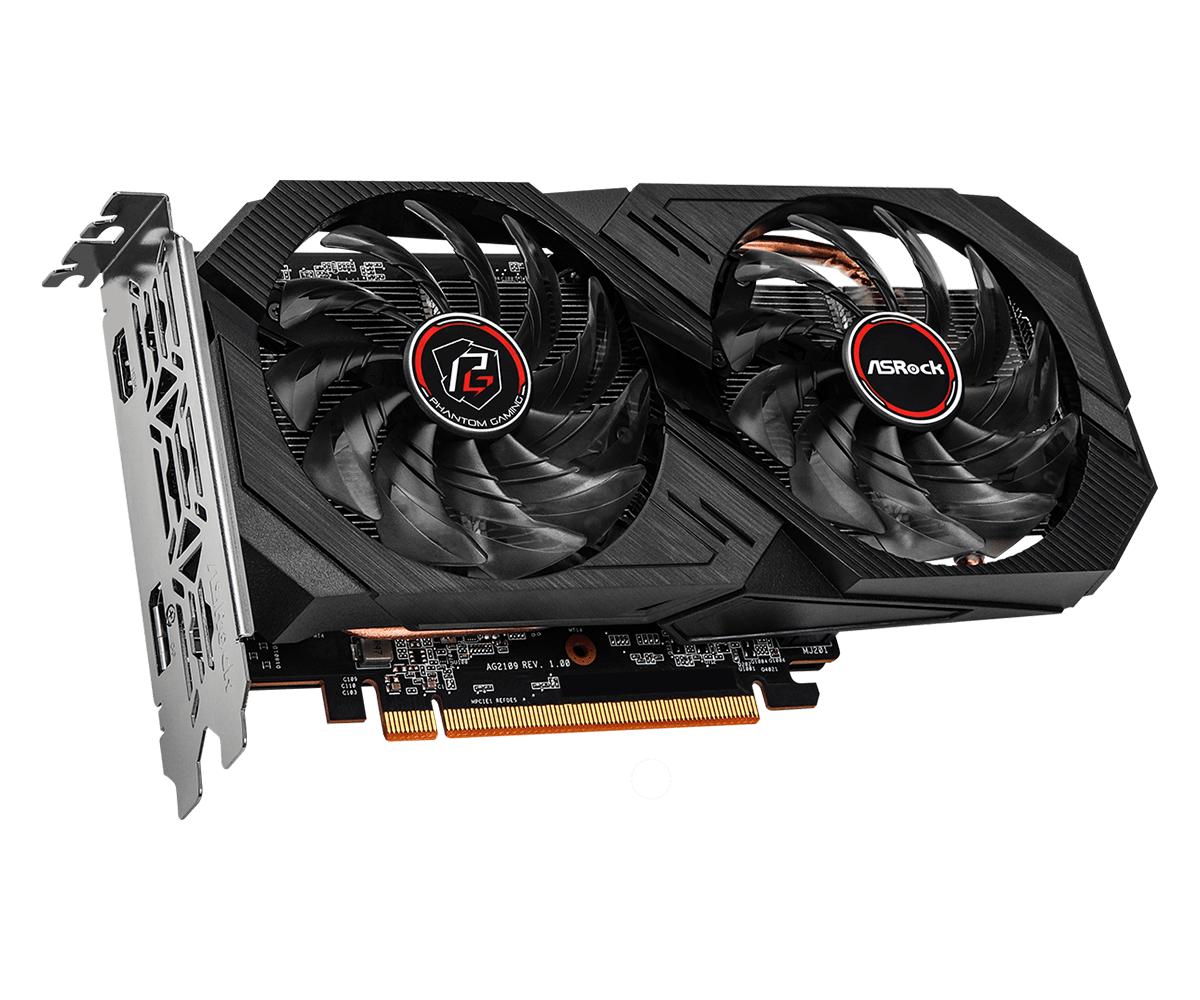

AMD Radeon RX 6500 XT

CM4 Functionality	Pi 5 Functionality	Driver Required?	More Info
None	Full	Yes	GitHub Issue

Videos Related to this Card

There are no videos for this card yet.

Description and Notes

The Radeon RX 6500 XT is a low-end graphics card supported by the open source amdgpu driver in the Linux Kernel.

It requires a 16x PCIe card slot. You will need to supply power to the card directly through a 1x8-Pin PCIe power cable.

amdgpu (open source) driver

To get the amdgpu driver loaded, you have to recompile the Linux kernel for Pi OS.

Go to Device Drivers > Graphics support on the menuconfig step, and select the amdgpu driver to install.

Also make sure you have the AMD firmware installed (sudo apt install -y firmware-amd-graphics) or the driver will complain about missing files.

On the Pi 5, we have tested both Coreforge’s Pi OS Linux GPU support branch and the simpler 15-line patch from yanghaku, and both offer full functionality.

See the linked GitHub issue for more details.
