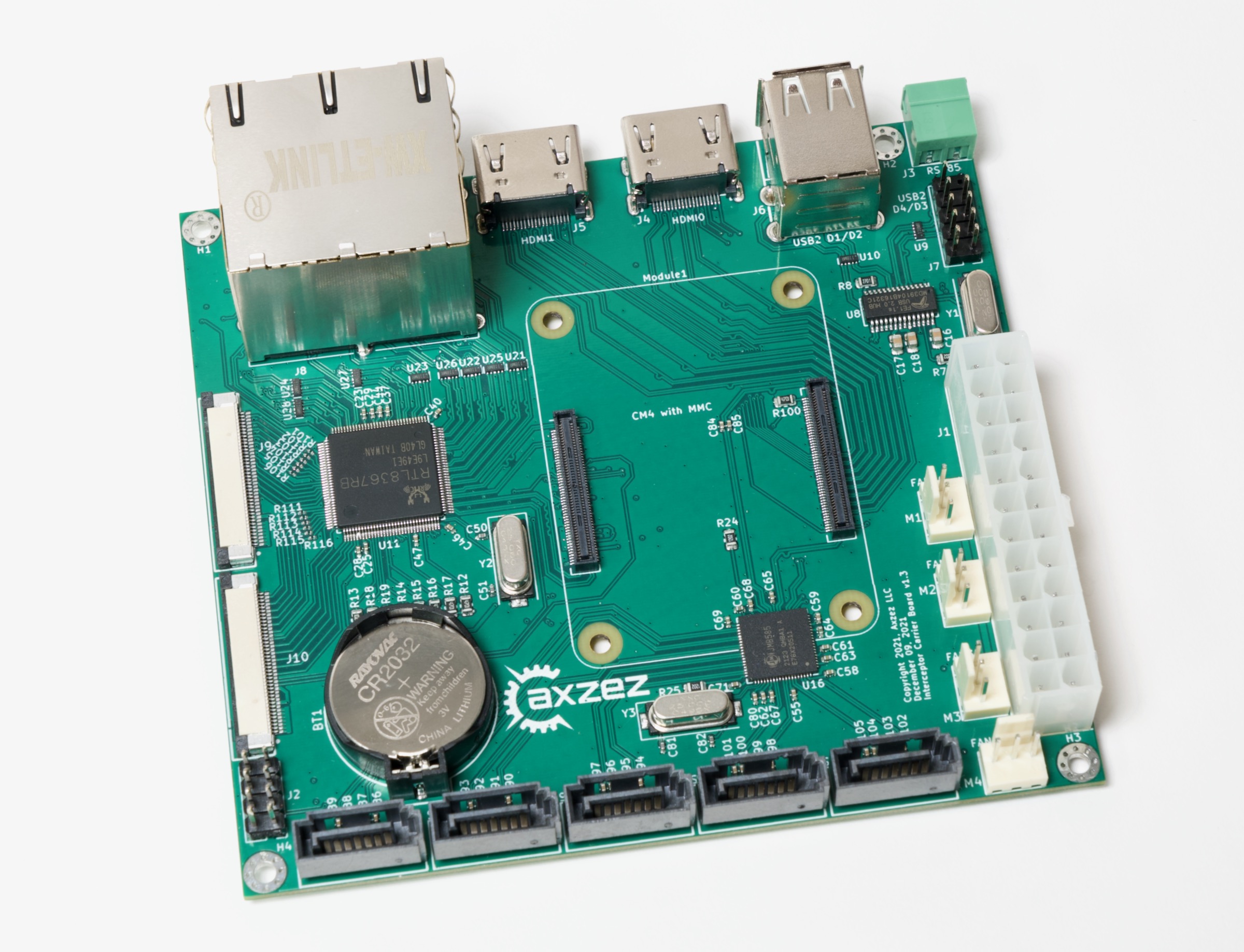

Exaviz Interceptor Carrier Board
| Website | More Info |
|---|---|
| More Info | GitHub Issue |
Description
Exaviz’s Interceptor CM4 Carrier Board has:
- 2 HDMI ports (4Kp60)
- 5 SATA ports (via JMicron JMB585)
- 4 RJ-45 gigabit ports (via managed RTL8367RB gigabit switch)
- 4 USB 2.0 ports (2 via pin header)
- RS-485
- 24-pin ATX power supply connector
- RTC clock with battery backup
- 4 3-pin fan connectors
- 8-pin header for system power LED, power button and UART serial cable
- Two FFC connectors (40 pos) for future expansion
It seems ideal for DVR or network storage applications, and the FFC connectors may enable some interesting new use cases in the future.
Exaviz used to sell the board under the name ‘Axzez’, but changed their name to ‘Exaviz’ in late 2025.
Exaviz has a newer and more expansive ‘Cruiser’ board designed for the CM5.
